Place of Origin:
Panyu，Guangzhou
ブランド名:
JETEX
証明:
CRAA Product Certification Certificate
Model Number:
EVH Series

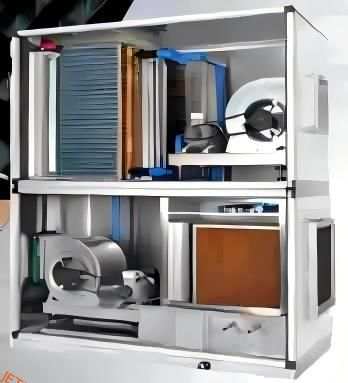

The evaporative total heat recovery unit, independently developed by our company, is an innovative HVAC system that utilizes water as the heat transfer medium. Through the use of special wet film packing materials, it enables an open-type total heat recovery process by facilitating cross-countercurrent heat and moisture exchange between the sprayed water and the indoor return air. During operation, the unit ensures that the indoor exhaust air and fresh air never come into contact, completely eliminating any risk of cross-contamination and guaranteeing clean and healthy air quality.
Jetex Evaporative Heat Recovery Unit Technical Parameters Table
|
型号 Model |
额定风量 Rated air volume (CMH) |
Unit section |
Heat Recovery Packing Configuration |
|||||||
|
|
|
Face Velocity of Coil (M/S) |
(Heat Recovery Efficiency KW |
Recovered Cooling Capaciity KW |
Recovered Heating Capacity (KW) |
Circulating Water Flow Rate(m/s) |
Circulating Water Pump Power(kw) |
External Static Pressure (Pa) |
Fan Power (kw) |
Dimensions L*W*H (mm) |
|
EVH50 |
5000 |
2.5 |
65% |
29.5 |
26.5 |
5.9 |
0.75 |
200 |
1.5 |
1200*600*600 |
|
|
|
2.3 |
70% |
31.7 |
28.6 |
6.4 |
0.75 |
300 |
2.2 |
|
|
|
|
2 |
75% |
34 |
30.6 |
6.8 |
0.75 |
400 |
2.2 |
|
|
EVH100 |
10000 |
2.5 |
65% |
58.9 |
53 |
11.8 |
1.1 |
200 |
3 |
1200*1200*600 |
|
|
|
2.3 |
70% |
63.5 |
57.1 |
12.7 |
1.1 |
300 |
4 |
|
|
|
|
2 |
75% |
68 |
61.2 |
13.6 |
1.1 |
400 |
4 |
|
|
EVH150 |
15000 |
2.5 |
65% |
88.4 |
79.6 |
17.7 |
1.5 |
300 |
5.5 |
1800*1200*600 |
|
|
|
2.3 |
70% |
95.2 |
85.7 |
19.1 |
1.5 |
400 |
5.5 |
|
|
|
|
2 |
75% |
102 |
91.8 |
20.5 |
1.5 |
500 |
7.5 |
|
|
EVH200 |
20000 |
2.5 |
65% |
117.9 |
106.1 |
23.6 |
2.2 |
300 |
7.5 |
1800*1800*600 |
|
|
|
2.3 |
70% |
126.9 |
114.2 |
25.5 |
2.2 |
400 |
11 |
|
|
|
|
2 |
75% |
136 |
122.4 |
27.3 |
2.2 |
500 |
11 |
|
|
EVH250 |
25000 |
2.5 |
65% |
151.7 |
136.5 |
30.5 |
3 |
300 |
11 |
2100*1800*600 |
|
|
|
2.3 |
70% |
163.3 |
147 |
32.8 |
3 |
400 |
11 |
|
|
|
|
2 |
75% |
175 |
157.5 |
35.2 |
3 |
500 |
11 |
|
Definition of the Evaporative Heat Recovery Unit?
An Evaporative Heat Recovery Unit (EHRU) is a system that recovers energy from exhaust air, typically by using evaporation, to pre-cool or pre-heat incoming fresh air. This process enhances energy efficiency in HVAC systems, particularly in hot and humid climates, by reducing the cooling or heating load
