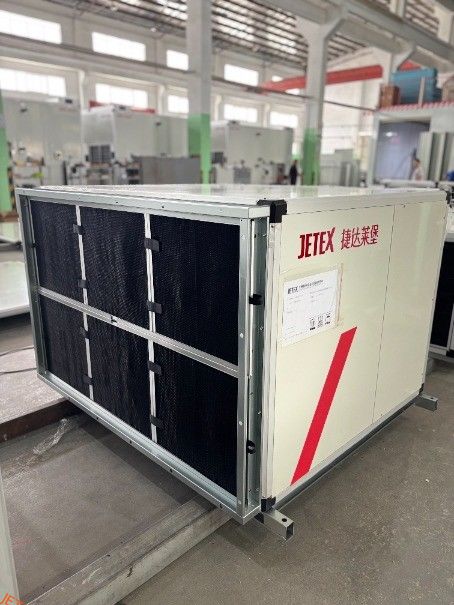

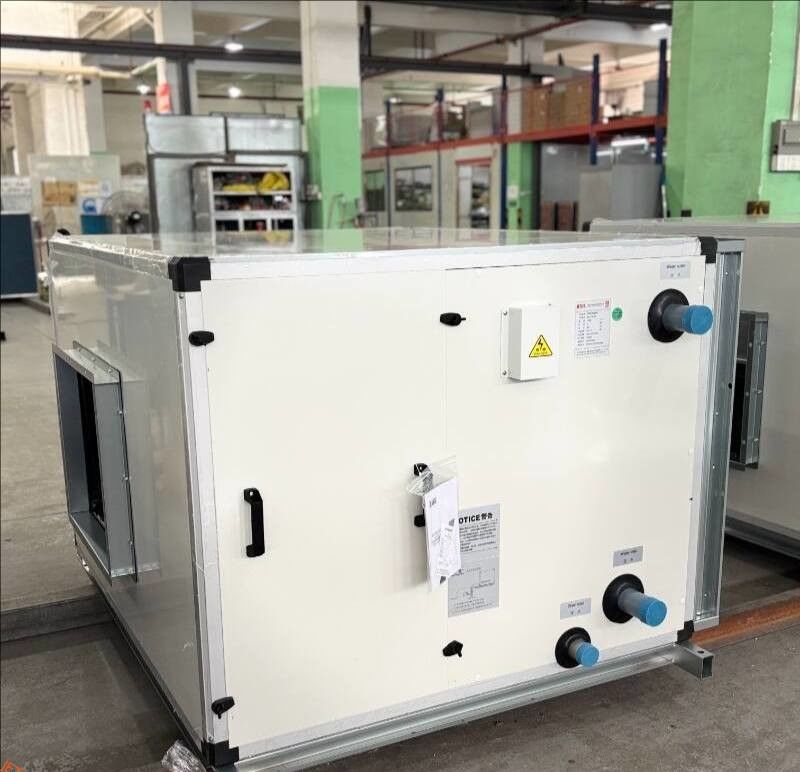

JETEX Ceiling Suspended Ahu Air Handler Large Airflow 2000m3/h-100000m3/h Energy Saving

Product Description:

JETEX  AHU( air handling unit )draw on the advantages of world - renowned products from Europe, the United States, Japan and other regions. Combining the design characteristics and development trends of modern air conditioning systems, we have meticulously developed high - quality products to meet various needs.The 5W and CBL series products are suitable for air conditioning systems in commercial buildings, hotels, auditoriums, theaters, large factories and other places. The products are widely sold in Hong Kong, Taiwan, Southeast Asia, Central Africa and all parts of the country.

Features:

• Product Name: Air Handling Units
• Wall Panel Type: Single - panel and double - panel.
• Coil Row Number: 4 - rows, 6 - rows and 8 - rows.
• Vibration Damper: Small Air Volume: Composite Rubber Shock Absorbers
• Cooling/Hot Water Coil: Smooth Copper Tubes
• Air Volume: 2000m³/h-100000m³/h
• Type: Air Handling Units
• Access Door: Snap-fastened Access Door
•


  Applications :

  · 5WC Ceiling Type: Hoisted inside the ceiling with a lower height than the horizontal type.

  · Industries - Commercial Buildings,Hotels,Shopping Malls ,etc.







  5WC Ceiling Type  AHU Performance Data (4 rows)

  序号 No.	产品名称 Product Name	型   号Model	风量 (m3/h)	余压 (Pa)	4 rows
  					回风工况(RA confition)		新风工况(FA confition)
  					冷量Cooling capacity(Kw)	冷量Cooling capacity(Ton)	冷量Cooling capacity(Kw)	冷量Cooling capacity(Ton)
  1	吊顶式空调风柜 Ceiling type AHU	5WC-20	2000	250	11.36	3.23	24.15	6.87
  2		5WC-25	2500	250	14.20	4.04	30.19	8.59
  3		5WC-30	3000	350	16.81	4.78	35.74	10.16
  4		5WC-35	3500	350	19.88	5.65	42.26	12.02
  5		5WC-40	4000	350	22.72	6.46	48.30	13.74
  6		5WC-45	4500	350	25.56	7.27	54.34	15.45
  7		5WC-50	5000	350	28.40	8.08	60.38	17.17
  8		5WC-60	6000	350	34.08	9.69	72.45	20.60
  9		5WC-70	7000	400	39.76	11.31	84.53	24.04
  10		5WC-80	8000	400	45.44	12.92	96.61	27.48
  11		5WC-90	9000	400	55.00	15.64	116.93	33.25
  12		5WC-100	10000	400	60.20	17.12	132.00	37.54
  13		5WC-120	12000	450	70.20	19.96	149.25	42.45
  14		5WC-140	14000	450	81.90	23.29	174.12	49.52

• For product parameters of larger air volume, please contact our company online sales .
• The specification parameters may be changed due to product improvement without prior notice. Please refer to the actual parameters of the unit.

Quality Assurance

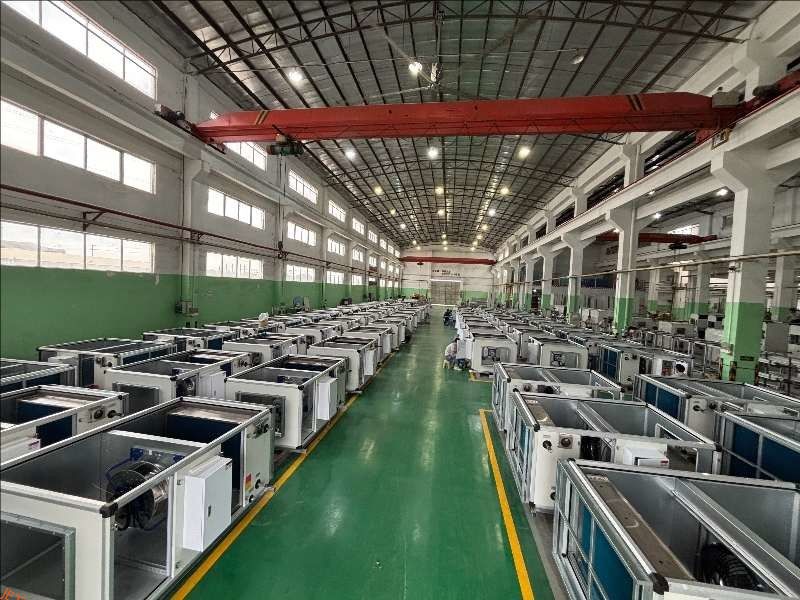

All products of our company are strictly inspected before leaving the factory. From raw materials to finished products, each process is inspected by special personnel. The factory is equipped with a fully automatic computer detection system to ensure the reliability and accuracy of product performance.

Customization:

Product Customization Services for the Air Handling Units

Brand Name: JETEX

Model Number: 5W AHU15-600

Place Of Origin: Guangdong, Panyu

Certification: ISO 9001:2015 Certification

Minimum Order Quantity: 1

Price: From $440

Packaging Details: Wooden Pallet With Outer Film Wrapping

Delivery Time: 25~30 Days

Payment Terms: For Customized Product, 30% Deposit Required, 70% Balance Payable Prior To Shipment

Supply Ability: 1000+

Construction:

Outer Panel: 0.5mm Color-coated Steel Sheet

Inner Panel: 0.5mm Galvanized Steel Sheet

Polyurethane Foam Insulation Thickness: 25mm

Packaging: Wooden Pallet With Outer Film Wrapping

Fan:  Brand Fan.

Vibration Damper: Small Air Volume: Composite Rubber Shock Absorbers

Base Frame: Welded Base Frame Made Of Galvanized Channel Steel Or Galvanized Steel Profile.

Packing and Shipping:

Product Packaging for Air Handling Units:Wooden pallet with outer film wrapping

Once your order is placed, our team will process it quickly and efficiently. The air handling units will be shipped via a reliable carrier to ensure timely delivery to your specified address. You will receive a tracking number to monitor the status of your shipment.

FAQ:

Q: What is the brand name of the Air Handling Units?

JETEX

Q: What is the model number of the Air Handling Units?

5W AHU15-100000

Q: Where is the Air Handling Units manufactured?

Guangdong, Panyu

Q: What certification does the Air Handling Units have?

ISO 9001:2015 Certification

Q: What is the minimum order quantity for the Air Handling Units?

1
